Understanding the types of septic systems in Pennsylvania is critical before buying land, building a home, or replacing a failing system. Pennsylvania has more alternative septic system types approved for residential use than most states — a direct result of the state's challenging geology, steep terrain, and variable soil conditions.
The Pennsylvania Department of Environmental Protection (DEP) regulates on-lot sewage disposal under Title 25, Chapter 73. Your local Sewage Enforcement Officer (SEO) determines which PA septic system types are permitted on your specific property based on soil testing, lot size, slope, and proximity to water sources. You don't get to choose freely — the soil evaluation drives everything.
Before any system can be designed or installed, a certified soil scientist or the township SEO performs a site evaluation. This involves digging test pits (typically 5 to 7 feet deep), running percolation tests, and assessing seasonal high water table depth, bedrock depth, and slope.
The results place your soil into one of several suitability categories under Chapter 73. Category 1 soils allow conventional systems. Categories 2 through 4 require progressively more advanced alternative septic systems PA regulations permit. Category 5 means the site cannot support any on-lot system — you'll need public sewer or a community system.
This process typically costs $500 to $1,500 for the soil evaluation and $250 to $500 for the permit application. It's non-negotiable. No soil test, no permit. No permit, no system. If you're buying land in PA, get the soil tested before closing.
The simplest and least expensive type. Wastewater flows by gravity from the house to a septic tank, then from the tank to a subsurface drain field made of perforated pipes laid in gravel-filled trenches. The soil does the final treatment as effluent percolates downward.
When it's approved: Your site has Category 1 soils — adequate depth to bedrock (at least 48 inches), seasonal high water table well below the trench bottom, acceptable percolation rates, and suitable slope (under 15%).
Cost range: $7,000 to $18,000 for a standard 3-4 bedroom home. This is the baseline against which all alternative systems are compared.
Pros: Lowest cost, simplest design, no mechanical parts, minimal maintenance (pump every 3-5 years), longest track record.
Cons: Requires the best soil conditions. Many PA properties — particularly in the Appalachian region — cannot support conventional systems due to shallow bedrock or clay soils.

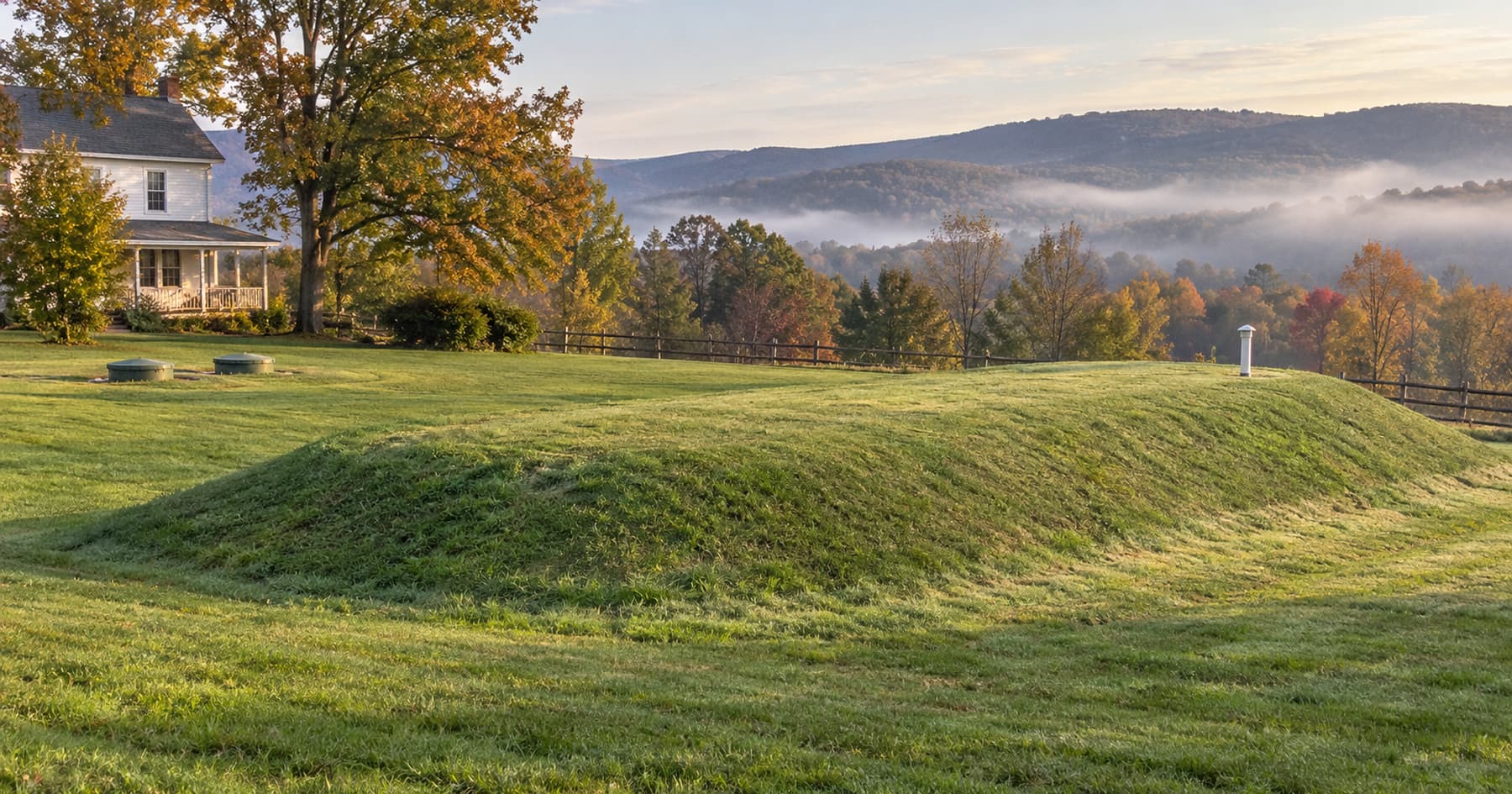

The most common alternative system type in Pennsylvania. When your soil isn't deep enough or drains too slowly for a conventional system, a sand mound raises the treatment area above the natural ground surface. An engineered sand bed provides the filtration that your native soil can't.
When it's approved: Category 2 or 3 soils — limited depth to bedrock or seasonal high water table, marginal percolation rates. The mound compensates by adding 2 to 4 feet of sand media above grade.
Cost range: $15,000 to $30,000. The sand, fill material, grading, and pump system add significantly to the conventional system price.
Pros: Works on sites where conventional systems fail. Well-established technology in PA — contractors and SEOs have decades of experience with them. Predictable performance when properly maintained.
Cons: Visually prominent (a raised mound 3-5 feet high on your property). Requires a pump and alarm system. Higher installation cost. The pump needs electricity, so power outages affect operation. Learn more in our detailed sand mound septic systems Pennsylvania guide.
A middle ground between conventional and sand mound. The treatment bed sits at the natural ground surface rather than below it (conventional) or above it (mound). A shallow layer of sand and aggregate is placed on top of the existing grade, then covered with soil.
When it's approved: Sites where the limiting zone (bedrock or water table) is deep enough to avoid a full mound but too shallow for a conventional buried system. The SEO determines whether at-grade is appropriate based on the specific depth measurements.
Cost range: $12,000 to $22,000. Less material and grading than a full sand mound, but more than conventional.
Pros: Lower profile than a sand mound. Less material cost. Often possible on sites that barely fail the conventional system criteria.
Cons: Still requires a pump in most configurations. Not as widely used as sand mounds, so fewer contractors have extensive experience.
ATUs use forced air to accelerate the biological breakdown of waste. An air pump injects oxygen into the treatment chamber, supporting aerobic bacteria that break down solids much faster than the anaerobic process in a conventional tank. The result is cleaner effluent that requires less soil absorption area.
When it's approved: Sites with severely limited soil or lot size. Because ATUs produce higher-quality effluent, the drain field or dispersal area can be smaller. Some PA townships specifically approve ATUs for lots that can't support any other system type.
Cost range: $12,000 to $25,000 for the unit plus dispersal area. Ongoing maintenance adds $200 to $500 per year for service contracts.
Pros: Excellent effluent quality. Smaller footprint. Can work on challenging sites. Some manufacturers offer NSF-certified units that meet PA requirements.
Cons: Mechanical complexity — air pumps, motors, and timers require maintenance and eventually replacement. Annual service contracts are mandatory in many PA townships. Higher operating cost due to electricity and maintenance. Read more about aerobic septic systems in PA.
Drip systems distribute treated effluent through a network of small-diameter tubing with emitters, similar to agricultural drip irrigation. The effluent is applied slowly and evenly across a shallow absorption area, allowing maximum soil contact and evapotranspiration.
When it's approved: Sites with very shallow soils, steep slopes, or irregular lot shapes where trenches or mounds won't work. Drip systems can be installed on slopes up to 25% and around trees, buildings, and other obstacles.
Cost range: $18,000 to $35,000. The treatment unit, pump system, filter, and extensive tubing network drive the cost.
Pros: Most flexible layout — tubing follows the contours of your property. Works on steep slopes and oddly shaped lots. Minimal visual impact once installed (tubing is buried 6-12 inches deep). Excellent effluent dispersal.
Cons: Most complex system type. Requires a pre-treatment unit (ATU or media filter), disk filter, pump, and control panel. Maintenance demands are the highest of any system type. Emitters can clog if maintenance lapses.
Peat systems use processed peat moss as a filtering medium. Effluent from the septic tank passes through a bed of peat, which provides biological and physical treatment before the water reaches the soil. Peat is naturally antimicrobial and provides excellent filtration.
When it's approved: Similar site conditions to sand mounds, but some SEOs approve peat systems on sites where the specific soil or space limitations favor peat over sand.
Cost range: $15,000 to $28,000. Comparable to sand mound costs, though peat media can be more expensive than sand in some PA regions.
Pros: Excellent treatment quality. Lower profile than some sand mounds. Peat is a natural, renewable material.
Cons: Peat eventually decomposes and needs replacement (typically 15-25 years). Not all PA contractors are experienced with peat systems. Availability of suitable peat material varies.
Spray systems treat effluent to a very high level (usually through an ATU plus disinfection) and then spray it onto a vegetated absorption area. The system is essentially a miniature wastewater treatment plant with surface application.
When it's approved: Only for sites where no subsurface system can work and public sewer isn't available. PA DEP requires an individual NPDES (National Pollutant Discharge Elimination System) permit, making these systems heavily regulated.
Cost range: $25,000 to $50,000+. The advanced treatment, disinfection, and permitting requirements make these the most expensive residential option.
Pros: Can work on virtually any site. Allows development on lots that would otherwise be unbuildable.
Cons: Highest cost and maintenance requirements. NPDES permit involves monitoring and reporting. Spray application means the area is not usable during application cycles. Some neighbors may object to the concept.
| System Type | Installation Cost | Annual Maintenance | Lifespan | Best For |
|---|---|---|---|---|
| Conventional gravity | $7,000–$18,000 | $100–$200 | 25–40 years | Good soil, adequate depth |
| Sand mound | $15,000–$30,000 | $150–$300 | 20–30 years | Shallow bedrock, high water table |
| At-grade | $12,000–$22,000 | $150–$250 | 20–30 years | Marginal depth sites |
| Aerobic (ATU) | $12,000–$25,000 | $200–$500 | 15–25 years | Small lots, poor soil |
| Drip irrigation | $18,000–$35,000 | $300–$600 | 15–25 years | Steep slopes, irregular lots |
| Peat-based | $15,000–$28,000 | $150–$300 | 15–25 years | Sites similar to sand mound |
| Spray irrigation | $25,000–$50,000+ | $500–$1,000+ | 15–20 years | Last resort, no other option |
Installation costs vary significantly by region. Southeast PA (Chester, Bucks, Montgomery counties) runs 15 to 25% above statewide averages due to higher labor costs and stricter township requirements. For detailed pricing by region, see our septic installation cost Pennsylvania guide.
The Sewage Enforcement Officer is the single most important person in your septic system project. Every PA township appoints an SEO — a certified professional who evaluates sites, issues permits, inspects installations, and enforces regulations.
The SEO's evaluation determines which Pennsylvania septic options are available to you. Their decision is based on objective criteria (soil test results, slope measurements, setback distances), but experienced SEOs also bring practical judgment about what works on local soils. A good working relationship with your township's SEO makes the permitting process smoother.
Key Chapter 73 requirements that affect your system type:
Understanding the PA septic permit process before you start saves time and prevents costly mistakes.
Your soil evaluation report contains three critical measurements that dictate your options.
Depth to limiting zone. The limiting zone is either bedrock or the seasonal high water table — whichever is shallower. Conventional systems need at least 48 inches. Sand mounds can work with as little as 20 inches. Some alternative systems can function with even less.
Percolation rate. How fast water drains through your soil, measured in minutes per inch (MPI). Ideal is 6 to 60 MPI. Faster than 6 means the soil is too coarse and won't filter properly. Slower than 60 means the soil is too tight for conventional dispersal.
Slope. Ground slope affects how effluent distributes through the drain field. Conventional trenches work on slopes up to about 12%. Sand mounds handle up to 12% as well, but require more complex engineering on slopes over 8%. Drip systems can manage slopes up to 25%.
If you're evaluating a property for purchase, request the soil test results from the seller or commission your own. The $500 to $1,500 investment in soil testing can save you from buying land that requires a $40,000 septic system — or can't support one at all.
Not freely. Your soil evaluation determines which alternative septic systems PA regulations allow on your specific property. If your soil supports a conventional system, you can choose a more advanced system — but you can't choose a simpler system than what your soil requires. The SEO's approval is final for system type selection.
Conventional gravity systems and sand mounds account for the majority of PA installations. Sand mounds are particularly prevalent because so much of Pennsylvania has shallow bedrock or high water tables. In some central and western PA counties, sand mounds outnumber conventional systems.
Conventional systems with concrete tanks last 25 to 40 years. Sand mounds last 20 to 30 years with proper maintenance. ATUs and drip systems have shorter lifespans — 15 to 25 years — due to mechanical components. Regular maintenance extends the life of any system type.
Yes. Any system with mechanical components (pumps, air blowers, timers, filters) requires annual professional servicing beyond the standard pumping schedule. ATUs typically need service contracts costing $200 to $500 per year. Drip systems need disk filter cleaning and emitter checks. Sand mounds need annual pump and alarm checks. Conventional gravity systems only need periodic pumping.
Converting requires a new permit, new soil evaluation (if the original is more than 5 years old), and a new system design. It's typically done when a system fails and the replacement must use a different technology. The process is essentially the same as a new installation from a permitting standpoint.
