South Carolina Well Water Standards (R.61-71 Guide)

South carolina well water standards are defined primarily by Regulation R.61-71, the state's comprehensive well construction code. Originally promulgated under DHEC and now administered by the South Carolina Department of Environmental Services (SCDES) following the July 2024 agency transition, R.61-71 establishes minimum construction requirements for every private water well drilled in the state. These standards exist to protect both the individual homeowner's water supply and South Carolina's broader groundwater resources from contamination.

Whether you are planning to drill a new domestic well, evaluating the condition of an existing well on property you are purchasing, or trying to understand why your well water quality has changed, understanding R.61-71 gives you the knowledge to ask informed questions and ensure your well meets current south carolina well water standards.

South Carolina Well Water Standards: R.61-71 Overview

R.61-71 is a comprehensive regulation that governs every aspect of well construction, maintenance, and abandonment in South Carolina. The regulation applies to all wells regardless of type — domestic, irrigation, monitoring, industrial, and geothermal. The key areas covered include well construction materials, installation methods, setback distances, grouting requirements, yield testing, water quality testing, and well abandonment procedures.

SCDES enforces R.61-71 through its five regional offices across the state. Compliance is monitored through the Notice of Intent (NOI) system, which requires licensed drillers to notify SCDES before drilling begins and submit completion reports after the well is finished. For details on the NOI process, see our South Carolina well permit requirements guide.

Well Construction Requirements Under R.61-71

The construction requirements in R.61-71 specify minimum standards for the physical components of a well. These requirements are designed to prevent surface water infiltration, protect the well from contamination, and ensure the structural integrity of the well over its expected service life.

Casing Specifications

Well casing is the structural shell that lines the borehole and prevents collapse, keeps out surface water, and isolates the well from contaminated shallow zones. R.61-71 specifies minimum casing requirements based on well type and diameter.

Casing Material	Common Use	Minimum Wall Thickness	Notes
Steel	Piedmont bedrock wells	Schedule 40 or 0.188 inches	Required through saprolite layer into competent bedrock
PVC (Schedule 40)	Coastal Plain sand wells	Per ASTM D1785	Standard for screened completions in unconsolidated formations
PVC (Schedule 80)	Deep Coastal Plain wells	Per ASTM D1785	Required when depth or pressure demands heavier wall
Stainless Steel	Corrosive water conditions	Per ASTM A312	Used in areas with aggressive water chemistry

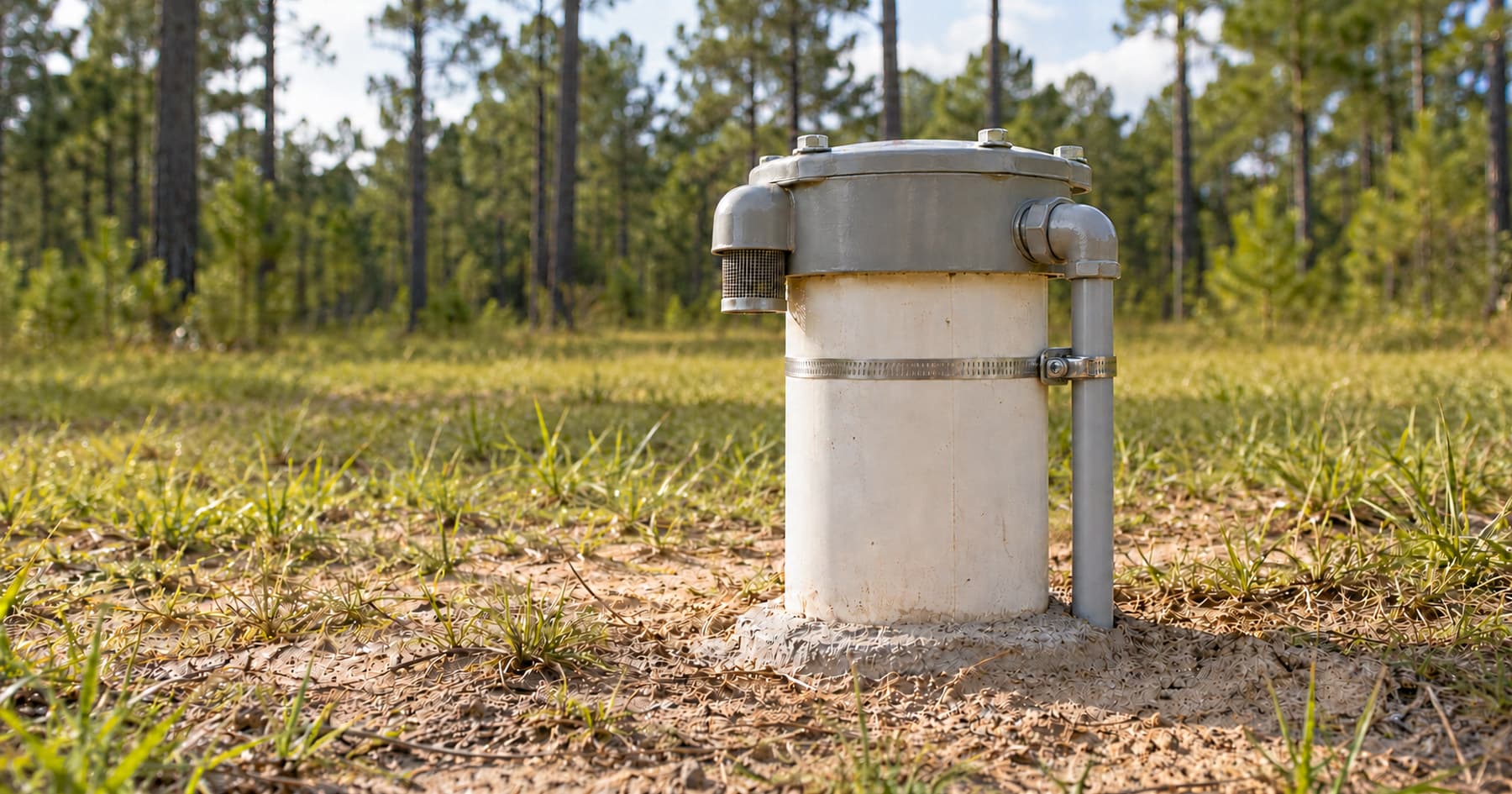

The casing must extend at least 12 inches above the finished ground surface to prevent surface water from entering the well. This above-ground extension, combined with a properly installed sanitary well cap, creates the first line of defense against contamination. R.61-71 also requires that the annular space between the casing and the borehole wall be sealed with grout to prevent surface water from migrating down the outside of the casing.

Grout Requirements

Grouting is one of the most critical aspects of well construction because it seals the space between the casing and the borehole wall, preventing surface contaminants from reaching the aquifer. R.61-71 specifies two approved grouting methods:

• Neat cement grout: A mixture of Portland cement and water, sometimes with additives to improve flow characteristics. Must be pumped from the bottom up to ensure complete annular sealing.
• Bentonite grout: A clay-based sealant that swells when hydrated, creating a tight seal. Available in pellet, chip, or slurry form. Must meet minimum solids content specified in R.61-71.

The grout must extend from the bottom of the casing to the ground surface — no gaps or voids are permitted. In the Piedmont region, where steel casing is set into bedrock, the grout fills the annular space through the saprolite zone, which is the most vulnerable interval for contamination entry. In the Coastal Plain, grout seals the casing through any clay confining layers that separate aquifers, preventing cross-contamination between water-bearing zones.

Minimum Setback Distances

R.61-71 establishes minimum horizontal distances between wells and potential contamination sources. These setbacks are among the most important south carolina well water standards because they provide the primary spatial protection for the well.

Feature	Minimum Distance from Well
Septic system drain field	100 feet
Septic tank	50 feet
Property line	5 feet
Sewer line (pressure)	50 feet
Sewer line (gravity)	100 feet
Livestock enclosure or feedlot	100 feet
Underground storage tank	100 feet
Surface water body	25 feet
Road or driveway	10 feet

The 100-foot separation between wells and septic drain fields is the setback that most commonly creates challenges for rural South Carolina homeowners. On properties where both a well and septic system must be sited, the combined setback requirements can significantly limit where each component can be placed. If setback requirements cannot be met, the property owner may apply to SCDES for a variance, but variances require justification and typically come with additional construction requirements such as deeper casing or enhanced grouting.

Yield Testing Requirements

R.61-71 requires that all newly constructed wells undergo a yield test to determine the sustainable production rate. The yield test, also called a pump test or capacity test, measures how much water the well can produce per minute and how quickly the water level recovers after pumping. The test provides critical data for sizing the well pump and pressure tank system.

For domestic wells, the yield test typically runs for a minimum of 4 hours. The driller records the static water level (before pumping), the pumping water level at intervals during the test, the pumping rate, and the recovery rate after pumping stops. While R.61-71 does not establish a minimum yield for domestic wells, most drillers and the industry recommend a minimum of 3 to 5 gallons per minute for a single-family residence.

Wells with low yields — under 3 gallons per minute — can still serve a household if paired with adequate water storage. A storage tank system allows the well to pump slowly over many hours, accumulating water that is available on demand through a pressure system. Many Piedmont wells in South Carolina have yields of 1 to 3 gallons per minute and serve households adequately through storage tank configurations.

Water Quality Testing at Completion

R.61-71 requires water quality testing for all newly constructed domestic wells. The standard completion testing includes bacteria testing (total coliform and E. coli) to verify that the well has not been contaminated during construction. Many lenders and health professionals recommend additional testing for nitrates, pH, hardness, iron, manganese, and other parameters that affect water usability and treatment system selection.

If bacteria are detected in the initial test, the well must be disinfected (shocked) with chlorine and retested. Persistent bacterial contamination may indicate a construction defect, inadequate grouting, or proximity to a contamination source. SCDES can provide guidance on remediation steps if repeated disinfection does not resolve the issue.

For a comprehensive overview of what to test for and how to interpret results, see our South Carolina well water quality guide.

LLR Oversight and Driller Accountability

While SCDES administers R.61-71 and oversees well construction standards, the Department of Labor, Licensing and Regulation (LLR) handles driller licensing and disciplinary actions. This dual-agency oversight means that both the well construction and the driller's professional conduct are monitored.

LLR requires all licensed drillers to maintain a $25,000 surety bond, pass a written examination, and demonstrate documented experience in well drilling. License classes range from Class A (all well types) to Class D (bored wells under 100 feet). Each class requires progressively more experience and covers broader categories of well construction.

If a well is constructed improperly, the property owner can file a complaint with both SCDES (for construction standard violations) and LLR (for licensing and bond claims). The $25,000 surety bond can be accessed to cover the cost of correcting substandard work, providing meaningful financial protection for homeowners.

Regional Variations in Well Construction

Piedmont Region: Rock Wells

The Upstate Piedmont presents unique challenges for well construction. Wells are drilled through a weathering profile that typically includes topsoil, clay subsoil, saprolite (partially weathered rock), and finally competent crystalline bedrock. Steel casing is required through the saprolite zone and must be set a minimum distance into competent rock — typically 10 to 20 feet — to ensure a solid seal. Below the casing, the well is an open borehole in the bedrock, with water entering through natural fractures.

Piedmont wells are inherently unpredictable in yield because water production depends on intersecting fractures, which are irregularly distributed. Experienced Piedmont drillers use geological mapping, fracture trace analysis, and sometimes dowsing (though its effectiveness is debated) to select drilling locations. Even with careful site selection, some wells require deepening or additional fracture stimulation to achieve adequate yields. For cost estimates, see our South Carolina well drilling cost guide.

Coastal Plain: Sand and Limestone Wells

The Coastal Plain, covering the southeastern two-thirds of South Carolina, offers more predictable well construction conditions. Wells are completed in unconsolidated sand aquifers or limestone formations using PVC casing with screened intervals placed opposite the water-bearing zones. The key construction challenge is selecting the correct screen slot size to prevent sand from entering the well while allowing water to flow freely.

Coastal Plain wells are typically more productive than Piedmont wells, with yields of 10 to 50 gallons per minute being common in productive aquifers. The Floridan aquifer, accessible in parts of Beaufort, Jasper, and Colleton counties, can yield over 100 gallons per minute from a single well. However, deeper Coastal Plain wells may encounter naturally occurring constituents like fluoride, radium, or dissolved solids that require treatment.

Frequently Asked Questions

What is R.61-71 in South Carolina?

R.61-71 is South Carolina's well construction regulation, officially titled "Well Standards." It establishes minimum construction requirements for all wells drilled in the state, including casing specifications, grout requirements, setback distances, yield testing, and water quality testing. The regulation is administered by SCDES and applies to all well types — domestic, irrigation, industrial, and monitoring.

How far must a well be from a septic system in South Carolina?

R.61-71 requires a minimum of 100 feet between a well and a septic system drain field, and 50 feet between a well and a septic tank. These setbacks protect the well from potential contamination by septic effluent. If setbacks cannot be met due to property constraints, a variance must be requested from SCDES, which may require enhanced well construction features.

Does South Carolina require water testing for new wells?

Yes. R.61-71 requires bacteria testing (total coliform and E. coli) for all newly constructed domestic wells. If bacteria are detected, the well must be disinfected and retested. While the state only requires bacteria testing, most lenders and health professionals recommend comprehensive testing including nitrates, pH, hardness, iron, and manganese. For guidance on testing, see our South Carolina well water quality guide.

What are the casing requirements for wells in South Carolina?

Casing requirements under R.61-71 depend on the geological setting and well type. Piedmont wells typically require steel casing through the saprolite layer into competent bedrock. Coastal Plain wells use PVC casing (Schedule 40 or 80) with screened intervals. All casings must extend at least 12 inches above finished ground surface and the annular space must be grouted from bottom to top.

Who enforces well construction standards in South Carolina?

SCDES enforces R.61-71 well construction standards through its five regional offices, while LLR handles driller licensing, examinations, and disciplinary actions. Both agencies work together to ensure wells are constructed properly. Homeowners can file complaints with either agency if they believe their well was improperly constructed. Browse our South Carolina septic and well water directory for licensed well professionals.
